● At present, the Type-C interface has entered consumer life since 2017.
● The supported Type-C signal source device has covered various types of applications such as computers, mobile phones, tablets, game machines, projectors, etc.
● The scheme of the Type-C display device has been incubated since 2017. At present, it is large in mobile phone accessories, education and online office markets.
● This year, the introduction of solutions in various professional display markets; currently a variety of mature solutions have been adopted.

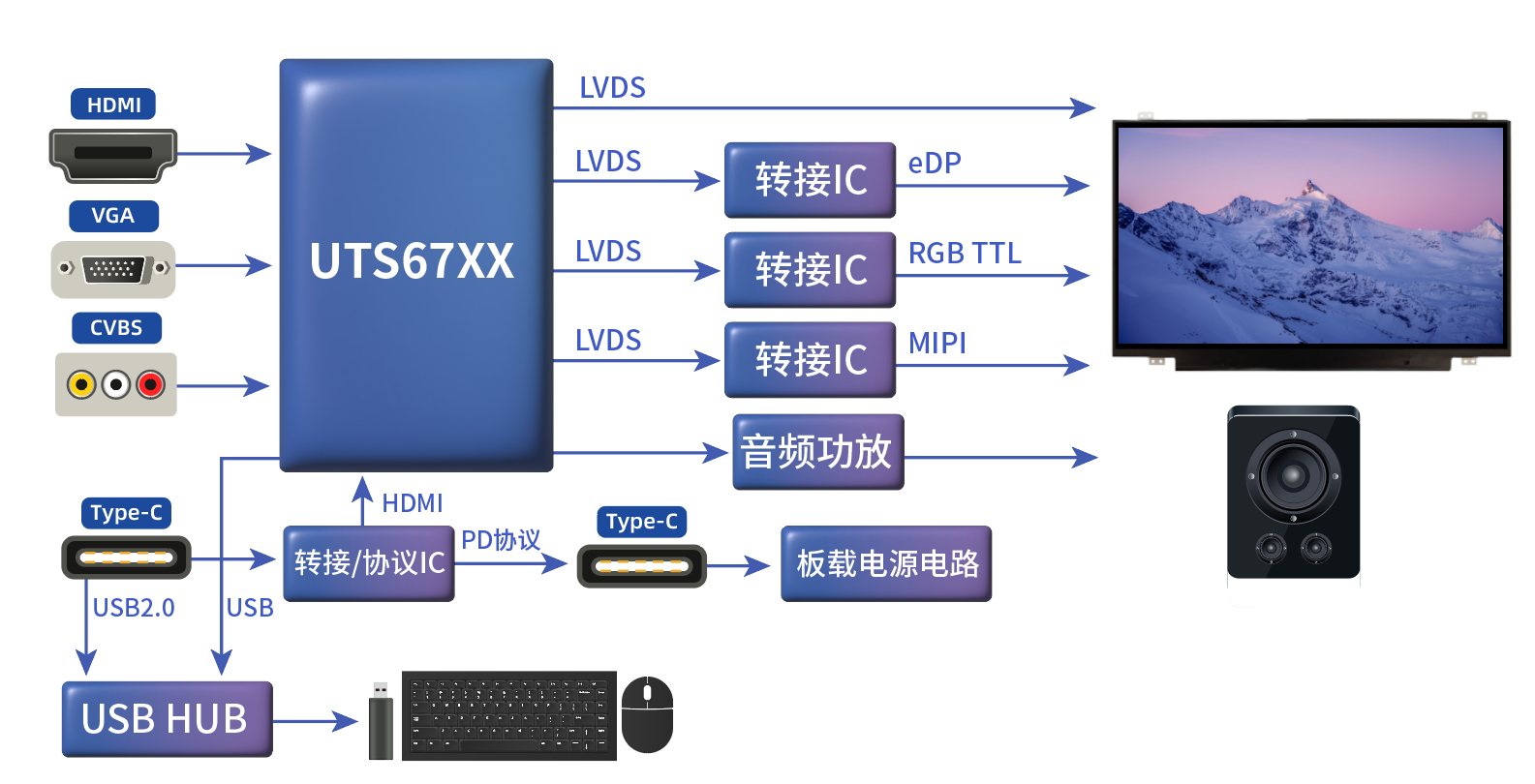

The simplest version
The characteristics of this plan:
1. The cheapest price, the price of the two main control chips is super low, and the best solution of the market TypeC display.
2. Function meets the most basic needs, which can expand support and card reading (only supports Type-C full -function equipment).
3. The development workload is small, stable.
4. HDMI, VGA, Type-C three signals input.
Conventional version
01. Scaler IC RTD25XX
The characteristics of this plan:
1. The scheme is mature, flexible and variable, and can be customized according to customer requirements.
2. Function meets the most basic needs, and can expand support for key mouse (only supports Type-C full -function equipment).
3. The most mainstream 2K solution for portable monitors, stable, good compatibility.
4. Both Type-C interfaces can support displaying the output device side and power adapter, which supports mixing (blind insertion).
02. Scaler IC RTD27XX
The characteristics of this plan:
1. The scheme is mature, flexible and variable, and can be customized according to customer requirements.
2. Function meets the most basic needs, and can expand support for key mouse (only supports Type-C full function equipment).
3. The most mainstream 4K solution for portable monitors, stable and compatible.
4. The two Type-C interfaces can support the displayed device side and power adapter of the output device, support mixing (blind insertion).
03. Scaler IC RTD26XXH
The characteristics of this plan:
1. The scheme is mature, flexible and variable, and can be customized according to customer requirements.
2. Function meets the most basic needs, and can expand support for key mouse (only supports Type-C full functional equipment).
3. The screens for the LVDS & TTLRGB interface are supported, which is very cost effective.
4. HDMI, VGA, Type-C, CVBS multiple signal input.
04. Scaler IC RDA85XX
The characteristics of this plan:
1. The scheme is mature, flexible and variable, and can be customized according to customer requirements.
2. Function meets the most basic needs. You can expand support for key mouse (only support Type-C full functional equipment) and card reading to play multimedia.
3. That is, you can play multimedia locally, or you can expand the phone on the same screen (currently supports full featured Type-C mobile phone).
4. HDMI, VGA, Type-C, CVBS multiple signal input and USB playback.
High -end version
01.RTD29XX
The characteristics of this plan:
1. The scheme is mature, the function is many, and the UI dazzling can be customized.
2. There are many functions, and you can expand support for key mouse (only supporting full featured Type-C device) and reading a multimedia card reading card reading.
3. That is, you can play multimedia locally, or you can expand the mobile phone on the same screen (in addition to supporting full featured TypeC mobile phones, it also supports Miracast, DLNA, AirPlay wireless screen protocol, and Apple mobile phone USB2.0 wired on the same screen).
4. It can support vertical screens, or vertical screens.
5. This scheme supports 90, 180, and 270 degrees at the same time. With the mobile phone screen to achieve the maximum screen display, automatically recognize the automatic rotation of the horizontal and vertical screen (no G-Sensor).
Advanced version
01. Scaler IC RTD25XX+RK33XX
The characteristics of this plan:
1. The cheapest price, the price of the two main control chips is super low, the market best solution can increase the support for the Android board card or other HDMI output board cards.
2. Function meets the most basic needs, which can expand support and card reading (only supports Type-C full function equipment).
3. The extended board card is flexible, and the Android, the same screen board, and the MINI PC board card are available.
4. HDMI, VGA, Type-C signal input.
02. Scaler IC RTD25XX+RK33XX
The characteristics of this plan:
1. The cheapest price, the two main control chips are cost -effective, stable and reliable, which can increase support for other HDMI output board cards.
2. Function meets the most basic needs, which can expand support and card reading (only supports Type-C full -function equipment).
3. The extended board card is flexible, and the Android, the same screen board, and the MINI PC board card are available.
4. HDMI, VGA, Type-C signal input.
5. At any Type-C input, you can set it to the device end or adapter (blind insertion).
03. Scaler IC RTD27XX+RK33XX
The characteristics of this plan:
1. This chip interface is rich, there are many input number channels, and the screen interface format is many.
2. Function meets a variety of needs, and can expand support for key mouse and card reading (only supports Type-C full function equipment).
3. The expansion board card is flexible, and the Android, the same screen board, and the MINI PC board can all be matched with multiple signal input.
5. At any Type-C input, you can set it to the device end or adapter (blind insertion).
6. can support vertical screens, or vertical screens.
7. Support 90, 180, and 270 degrees rotation. With the mobile phone screen to achieve the maximum screen display, automatically recognize the automatic rotation of the horizontal and vertical screen (no G-Sensor).
8. Support the PIP/POP/4P function (cannot coexist at the same time as the rotation function).
Support mobile phone/computer model
Support full-featured Type-C device list. The following are only some models selected, more models are added;
Support full-featured Type-C model products
● Huawei mobile phone (P20, Mate10 series and above and Honor PRO series) (average annual average of more than 200 million units since 2018) (Mate10 was listed at the end of 2017, P20 2018 was listed)
● Samsung mobile phone (S8 and Note9 or above series) (average sales of more than 300 million units in 2018) (S8 mass production in early 2017, Note8 2017 base production)
● Nuts mobile phone (R1, PRO2S, Pro3 and above)
● LG mobile phone
● Game mobile phone (ASUS, Black Shark and other game mobile phones)
● Nintendo Switch game console (5-60 million units)
● Notebook computers (ultra -pole and office book)
● iPad/Android tablets
● MacBook
● RTX1070 and above graphics cards
● RK development board
● Raspberry Pi development board
